KBPC3510 Single Phase Diode Bridge Rectifier

KBPC3510 Single Phase Diode Bridge Rectifier

Brand: Others

Category: Electrical Circutary and Parts

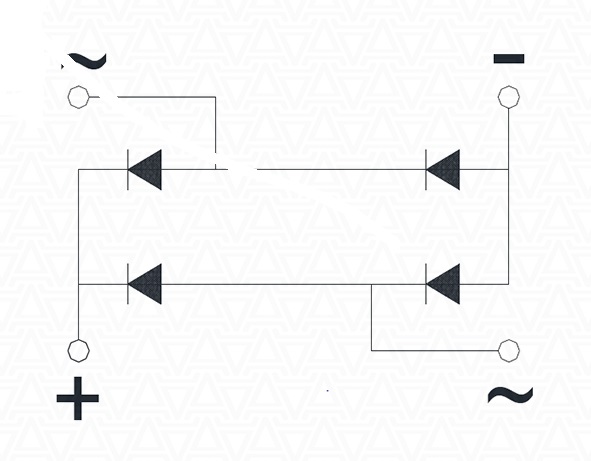

Single Phase Diode Bridge Rectifier KBPC3510 is a bridge rectifier circuit of four diodes that is used in the process of converting alternating current.
Output current IO: 35 A, Max. repetitive peak reverse blocking voltage VRRM:1000 V
Features : low on-state losses; high reverse voltage and high current handling capabilities; easy chassis mounting; high surge current
Applications: rectifier for power supplies; input rectifier for variable frequency drives; rectifier for dc motor field supplies; battery charger rectifiers; power regulators;.

The housing of the KBPC3510 diode bridge is metal, all components are electrically insulated with epoxy resin (solid casting in a single capsule). Epoxy resin is characterized as a material with a high level of flame resistance. An alternating current is fed to the input "~" of the circuit. In each of the half - periods the input current passes only through two diodes.As a result, at the output "+" and "-" we get a current pulsing at twice the frequency of the input current.

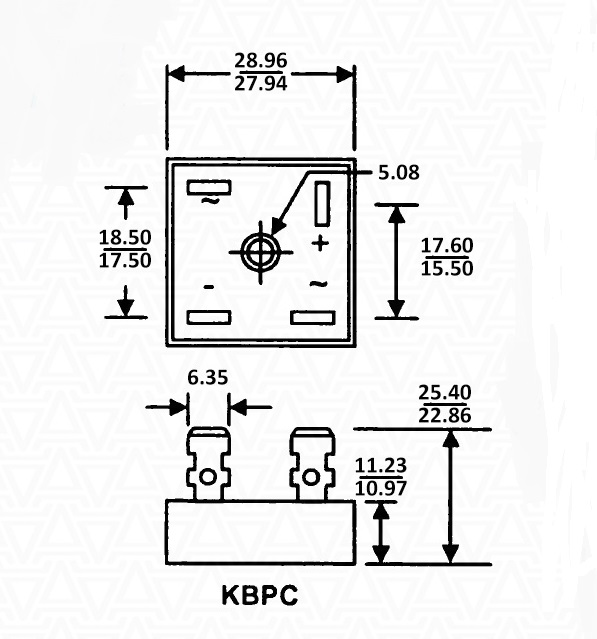

When operating at high currents, it is always recommended to install the KBPC3510 diode bridge together with a heat sink (heatsink, cooler) to maintain an optimal thermal operating mode. In the central part of the housing the manufacturer has already provided a through hole specifically for mounting.

Features of Single Phase Diode Bridges KBPC3510 : low on-state losses; high reverse voltage and high current handling capabilities; easy chassis mounting; high surge current. Their main applications are: rectifier for power supplies; input rectifier for variable frequency drives; rectifier for dc motor field supplies; battery charger rectifiers; power regulators;.

Output current IO 35 A

Max. repetitive peak reverse blocking voltage VRRM 1000 V

RMS reverse voltage VR(RMS) 700 V

Non-repetitive surge current IFSM 400 A

Safety factor I2t 664 A2·s

Forward voltage per diode VFM 1.2 V

Forward current per diode IFM 17.5 A

Typical junction capacitance Cj 300 pF

RMS isolation voltage VISOL 2500 V

Thermal resistance, junction to case Rth(j-c) 2.1 ºC/W

Temperature of p-n junction Tvj max -65 to +150 ºC

Weight W 30 g (KBPC)
