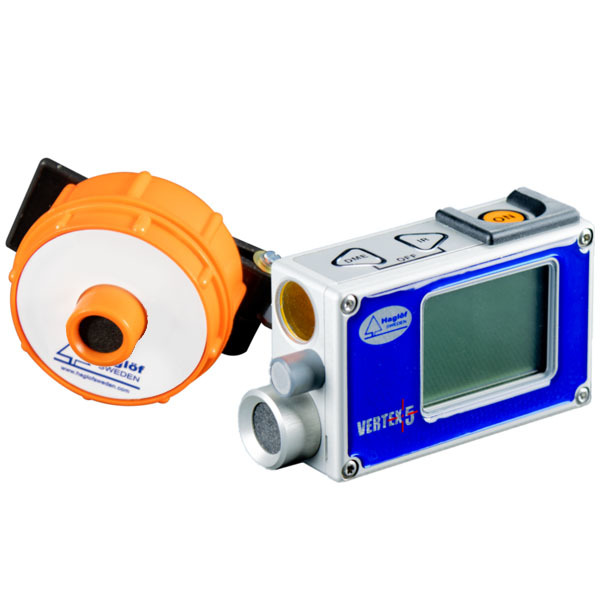

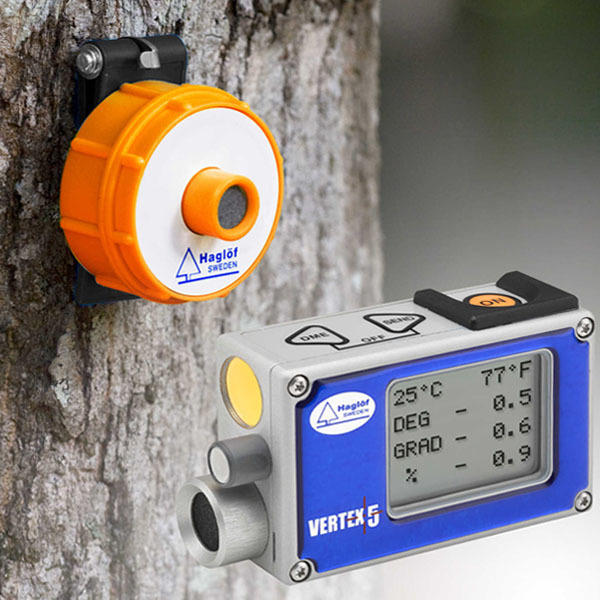

Vertex 5 Hypsometer Height Distance Angle measurement
Vertex 5 Hypsometer Height Distance Angle measurement

Vertex 5 Hypsometer Height Distance Angle measurement

Vertex 5 Hypsometer Height Distance Angle measurement
Brand: Others
Category: Surveying Instruments

Vertex is many foresters’ preferred choice of instrument to perform precision height, angle and distance measurements in the forest. The Vertex 5 can be used in dense vegetation and undergrowth.





  • Measure Distance up to 30 meters or 100 feet with a resolution of 0,01 m or 0,1 feet even in dense vegetation, and with an accuracy of +-1% or better if calibrated
  • Measure Heights up to 999 meters or 3277 feet with a resolution of 0.1m/0.1 ft
  • Measure Angles in Degrees 360°, Grads 400° or percent % with a resolution of 0.1°
  • 5000 data sets can be stored in the built-in memory and saved as a CSV file
  • Bluetooth® 4.0 (BLE) can be used to transfer data wirelessly to devices with Android, iOS, or Windows
  • (BAF) Basal Area Function to determine the minimum diameter DBH that a tree most have, on sample point to be counted
  • Multilanguage, select your preferred language
Vertex 5
Size 80x54x31mm (3,14”x2,12”x1,22”)
Weight 173 g
Temperature -20° to +45°C / ‐4°F to 113°F
Wireless interface IR, Bluetooth® BLE
Memory Storage 5000 data sets.
Signal Built-in loud speaker
Ultra sonic frequency 25 kHz
Height 999 m (3277 ft.). Resolution: 0.1 m/ 0.1 ft
Angle  -90° to +90° deg./ ‐100° to +100° grads, Resolution: 0.1˚
Distance 30 m / 100 ft. With 360° adapter 20 m / 60 ft .
Resolution: 0.01 m/ 0.1 ft Accuracy: 1%
BAF factors 0.5, 1 to 9 (m2/ha) or 5, 10, 15..to 50 (ft2/acre)
Languages settings Czech, Danish, English, Estonian, Finnish, French, German, Italian, Latvian,
Lithuanian, Norwegian, Polish, Portuguese, Russian, Spanish and Swedish.
Transponder T4
Size Diameter 70 mm/2,8”
Weight 85 g/5 oz (Incl. Battery).
Battery 1 ea AA 1.5V alkaline battery necessary for T3
Power consumption 9mW
