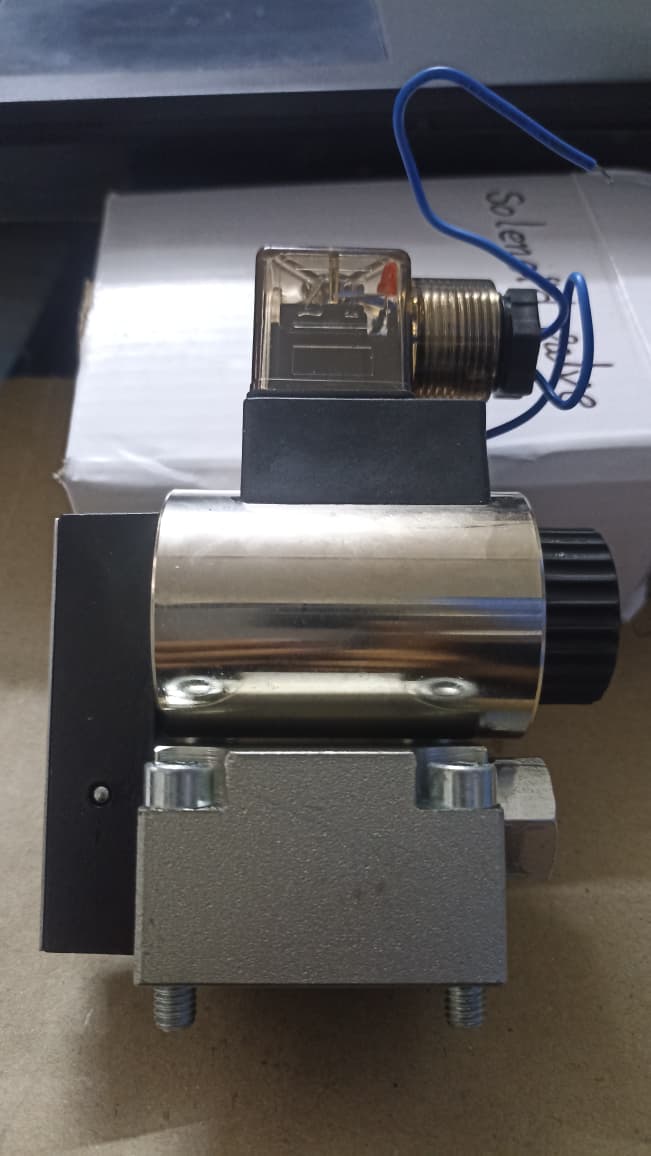

Solenoid Valve DianCiFA 23QDF6K/315E24V with MFZ2-3C 24VDC Coil
Brand: Others
Category: SwitchGear, Relays & Diode
- Valve Type: Two-position, three-way (2P3W) directional ball valve
- Max Pressure: 31.5 MPa (315 bar / ~4570 psi)
- Nominal Diameter /: Typically sized at 6mm nominal diameter
- Fluid Medium: Hydraulic oil
- Coil Type: MFZ2-3C,Coil Voltage (U): 24V DC, Force (F): 30N, Stroke (S): 3mm
The 23QDF6K/315E24V is an electromagnetic/solenoid valve which is a 2-position, 3-way hydraulic solenoid ball valve . It handles high-pressure industrial hydraulic systems with a maximum working pressure rating of 31.5 MPa (315 bar) running on a 24V DC electrical coil MFZ2-3C.

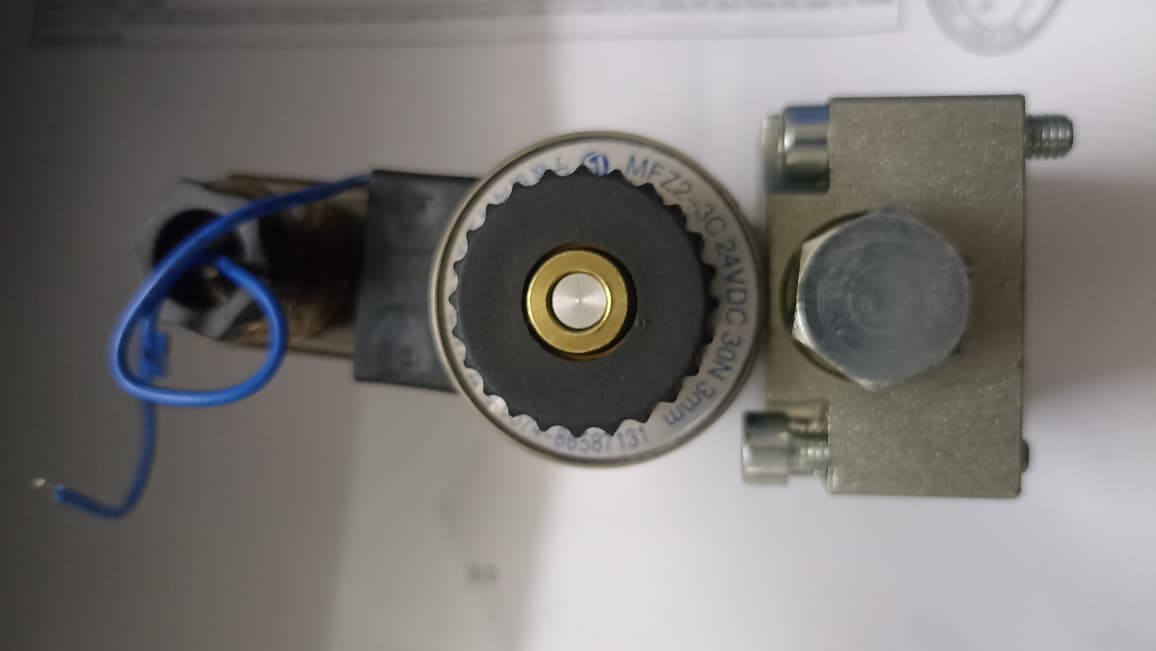

MFZ2-3C is hydraulic solenoid valve coil / electromagnet. It is used in hydraulic/pneumatic systems or also in ball valves. It operates on 24V DC power, provides a force of around 30N, and has a stroke or movement limit of 3mm.
Technical Specifications
- Model Type: MFZ2-3C
- Voltage (U): 24V DC
- Force (F): 30N
- Stroke (S): 3mm
- Application: Solenoid ball valves, hydraulic machinery, and industrial automation control parts.
