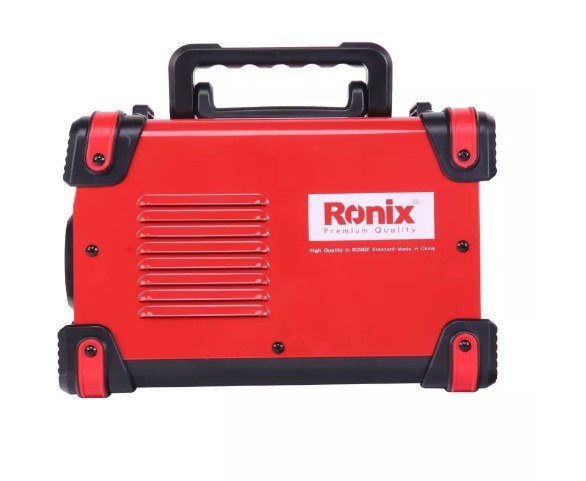

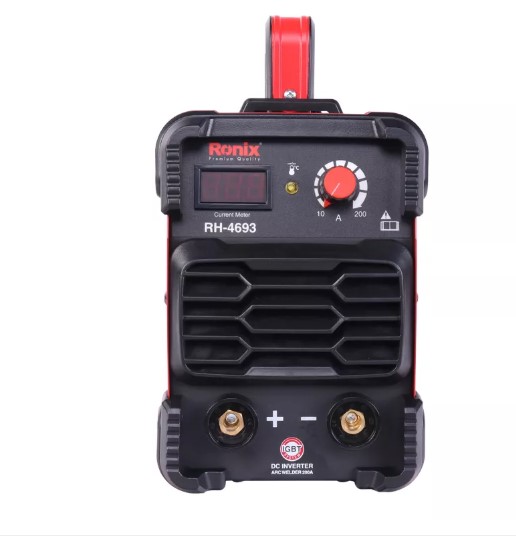

RONIX DC Arc Welding Inverter 20-200A RH-4693
Brand: RONIX
Category: Power and Hand Tools
- Model: RH-4693
- Warranty: Six month
- Max Input Power Capacity: 9.4 KVA
- Duty Cycle (25°C): 35%
- Output Current Range: 200A
- Weight: 5.84Kg
- No load Voltage: AC 220V±15%
- IGBT technology for better welding quality, greater welding penetration, reduced energy consumption, and increased efficiency.
- Automatic short circuit protection, easy ignition, less spark, and excellent arc strike performance on rusted surfaces.
- Multi-protection against over voltage, over heat, over current, and over load.
- Hot start, anti-stick, and less spark, making it reliable and ideal for entry-level welders.
- Digital display provides highly accurate welding.
- Professional cooling system to increase efficiency and continuous welding.
- Equipped with a full bridge inverter circuit.
| Model | RH-4693 |
| Input voltage | 220-240V |
| No-Load voltage | 64.7V |
| Out-put Current Range | 20-200A |
| Rated Out-put Voltage | 28V |
| Max Input Power Capacity | 10.5KVA |
| Max in-put Current | 39.57A |
| Power Factor | 0.73 |
| Duty-cycle (25°C) | 200A/20% |
| Insulation Class | F |
| Protection | IP21S |
| Electrode Diameter | 1.6-5.0mm |
| Weight | 5.84Kg |
| packaging | COLOR BOX |
| Accessories | "1.8M+200A Welding holder 1.6M+200A Earth clamp" |
1.8M+200A Welding holder, 1.6M+200A Earth clamp
