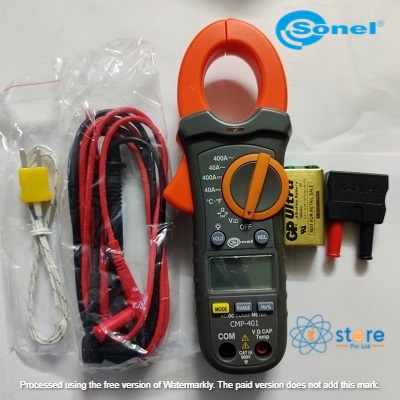

Sonel Digital AC/DC Clamp Meter 400A CMP-401

Sonel Digital AC/DC Clamp Meter 400A CMP-401

Brand: Sonel

Category: Digital Meters

The Sonel CMP-401 compact clamp meter is a surprisingly versatile tool. It is used for direct AC and DC current measurement up to 400 A. The additional functions of the device include the measurement of direct and alternating voltages up to 600 V (with the use of test leads), resistance measurement, continuity of connections measurement with acoustic signalling, capacity measurement and temperature measurement with the use of a probe which is included in the basic equipment of the device.

~~Rs. 30,556.00~~ Rs. 22,088.00

Add to Cart

Measure wide range of electrical parameters with the CMP-401 Clamp Meter

Measurement functions

AC current measurement up to 400 A
DC current measurement up to 400 A
DC and AC voltage measurement up to 600 V
resistance measurement
continuity test with acoustic signalling (beeper) for resistance below 50 Ω
temperature measurement (Fahrenheit or Celsius)
frequency measurement
capacitance measurement
diode test

Overview

Sonel CMP-401 Clamp Meters is designed to hard work in arduous measuring conditions. A special housing, covered with an elastomer coating, provides protection against drops and mechanical damages. CMP-401 is the first choice for those who expect the device to be reliable at work in industrial and residential environments.

Designed for specialists

industrial and commercial electricians
plant maintenance
facility maintenance
electrical contractors
utility technicians
HVACR specialists

Special features

non-contact neon lamp
safe, insulated measurement clamp
reinforced, impact resistant enclosure
automatic selection of ranges with the capability of switching over to the manual selection mode
HOLD function, allowing for freezing the result on the display
large and easy to read LCD display with backlit
relative measurement function
indication of range overflow

Faciliating the measurements

The AC-16 adapter expands the application of the clamp meter. With the ratio x1 and x10, 230 V AC of voltage and max 16 A of current, the adapter can be applied with any type of clamp meter.

DC current measurement

Range	Resolution	Accuracy
4.00 A	0.01 A	±(2.5% m.v. + 5 digits)
400.0 A	0.1 A	± (2.8% m.v. + 5 digits)

“m.v.” - measured value

DC voltage measurement

Range	Resolution	Accuracy
400.00 mV	0.01 mV	±(0.8% m.v. + 2 digits)
4.000 V	0.001 V	±(1.5% m.v. + 2 digits)
40.00 V	0.01 V	±(1.5% m.v. + 2 digits)
400.0 V	0.1 V	±(1.5% m.v. + 2 digits)
600 V	1 V	±(2% m.v. + 2 digits)

Resistance measurement

Range	Resolution	Accuracy
100.0 Ω	0.1 Ω	±(1.0% m.v. + 4 digits)
4.000 kΩ	0.001 kΩ	±(1.5% m.v. + 2 digits)
40.00 kΩ	0.01 kΩ	±(1.5% m.v. + 2 digits)
400,0 kΩ	0.1 kΩ	±(1.5% m.v. + 2 digits)
4.000 MΩ	0.001 MΩ	±(2.5% m.v. + 3 digits)
40.00 MΩ	0.01 MΩ	±(3.5% m.v. + 5 digits)

Capacitance measurement

Range	Resolution	Accuracy
40.00 nF	0.01 nF	±(4% m.v. + 20 digits)
400.0 nF	0.1 nF	±(3% m.v. + 5 digits)
4.000 μF	0.001 μF	±(3% m.v. + 5 digits)
40.00 μF	0.01 μF	±(3% m.v. + 5 digits)
100.0 μF	0.1 μF	±(4% m.v. + 10 digits)

AC current measurement

Range	Resolution	Accuracy
4.000 A	0.001 A	-
40.00 A	0.01 A	±(2.5% m.v. + 8 digits)
400.0 A	0.1 A	±(2.8% m.v. + 5 digits)

frequency range: 50…60 Hz

AC voltage measurement

Range	Resolution	Accuracy
400.00 mV	0.01 mV	±(1.5% m.v. + 30 digits)
4.000 V	0.001 V	±(1.5% m.v. + 2 digits)
40.00 V	0.01 V	±(1.5% m.v. + 2 digits)
400.0 V	0.1 V	±(1.5% m.v. + 2 digits)
600 V	1 V	±(2% m.v. + 2 digits)
