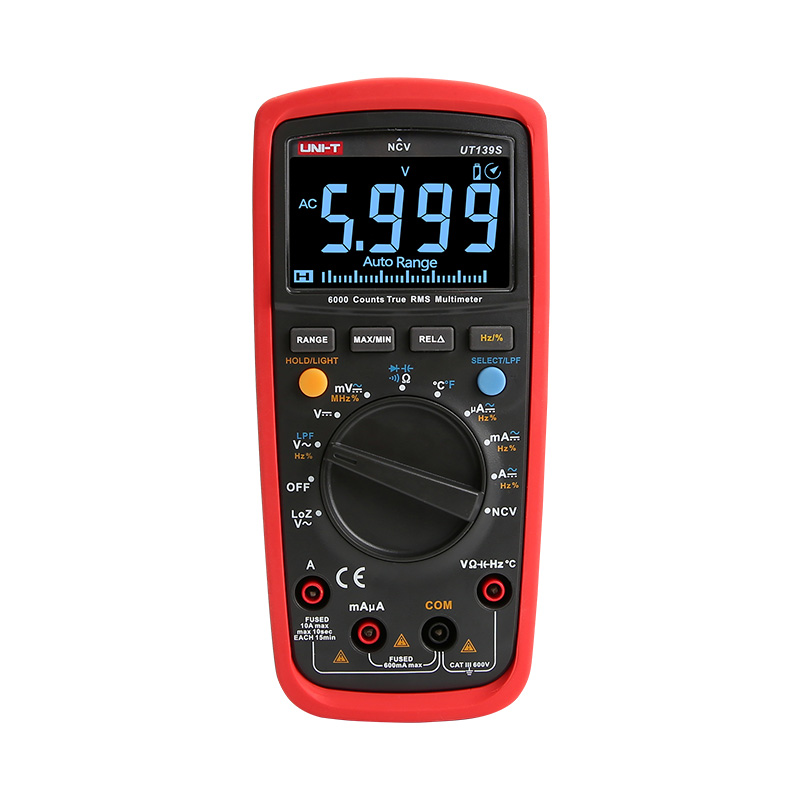

UNI-T UT139C Digital Multimeter Auto Range True RMS Meter Handheld Tester 6000 Count Voltmeter Temperature Test UNITY
Brand: UNI-T
Category: Digital Meters
UT139 series are CAT III 600V digital multimeters designed for electricians. Its NCV feature can effectively check electrical status through measuring EM field intensity. The new UT139E/S models include special features such as LoZ (ACV) for measuring‘ghost’ voltage. Its built-in 31-segment analog bar also gives electricians a better visual representation of measurement results. UT139S is built with black EBTN display and it is a perfect meter for working in dark environments.
Specification:
Display Count: 6000
Auto Range: √
Manual Range: √
True RMS: √
Bandwidth (HZ): 45HZ:1kHz
V.F.C: √
Duty Cycle: 0.1%~99.9%
Diode: Around 3V
NCV: √
Auto Power Off: Around 15 Minutes
Continuity Buzzer: √
Low Battery Indication: ≤2.5V
Data Hold: √
Relative Mode: √
MAX/MIN: √
LCD Backlight: √
Input Protection: 600Vrms
Input Impedance for DCV: 1GΩ Max
UT139C True RMS Digital Multimeter
DC Voltage (V): 60mV/600mV/6V/60V/600V ±(0.5%+2)
AC Voltage (V): 60mV/600mV/6V/60V/600V ±(0.8%+3)
DC Current (A): 600μA/6000μA/60mA/600mA/6A/10A ± (0.7%+2)
AC Current (A): 600μA/6000μA/60mA/600mA/6A/10A ±(1%+3)
Resistance (Ω): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(0.8%+2)
Capacitance (F): 9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF ±(4.0%+5)
Frequency (Hz): 10Hz-10MHz ±(0.1%+4)
Temperature (°C): -40 °C~1000°C ±(1.0%+3)
Temperature (°F): -40°F~1832°F ±(1.5%+5)
