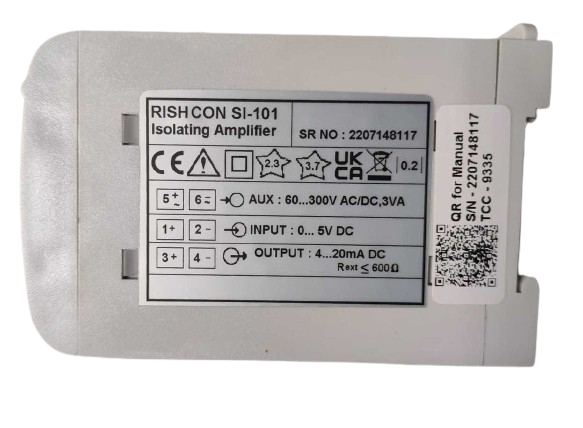

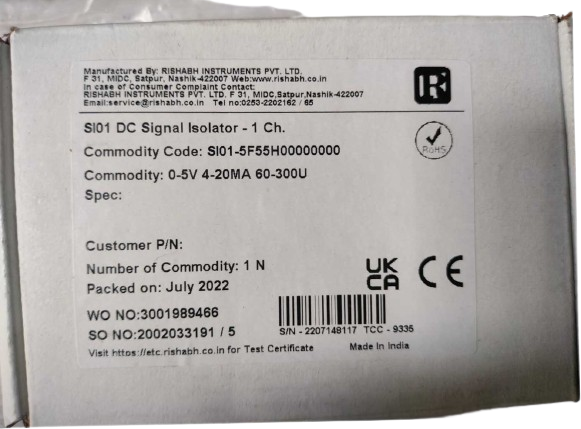

Rishabh DC Signal Isolator Rish CON SI 101 Isolating Amplifier
Brand: RISHABH
- RISH CON SI101 is a simple isolator suitable for a variety of applications.
- It can be used, for example, to isolate the 4…20 mA current signal from a 2-wire thermocouple transmitter or temperature controller, and pass it on to a PLC or data logger.
- SI 101 eliminates earth and ground loop problems and simplifies interfacing.
- SI 101 electrically isolates the input, output & power supply
- The isolator fulfills all the requirements concerning EMC and safety (IEC 61010).
Features:
- I/P 20mA or 10V & O/P 20mA or 10Vdc
- Isolation between input and output & Power Supply:
- 2.3 kV between I/P & O/P,
- 3.7 kV between Power Supply & I/P or O/P
- Accuracy:-0.2%
- Output Burden:- 600Ohms @ 20mAdc
- Output Burden:- 2kOhms @ 10Vdc
- Onsite selectable DIN rail & wall mounting
- Universal Power Supply - 85...230Vac/dc
- LED indicating the power on state
For more specs , check the datasheet attached at Files section
